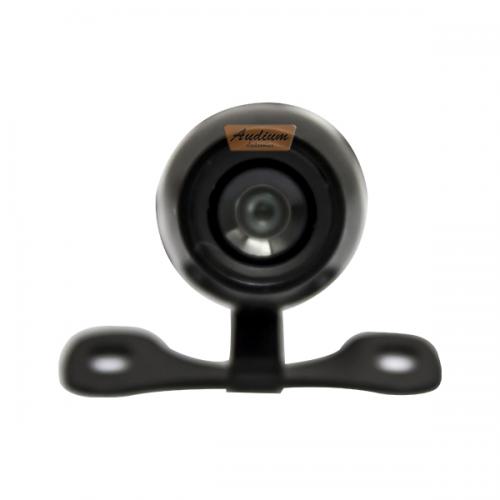

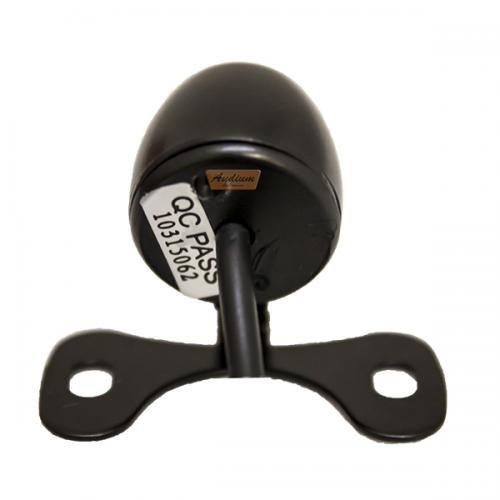

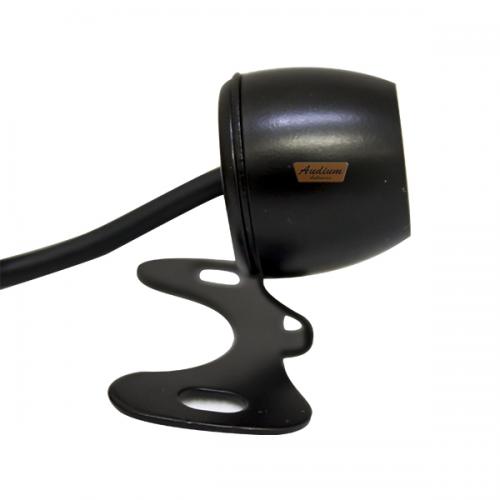

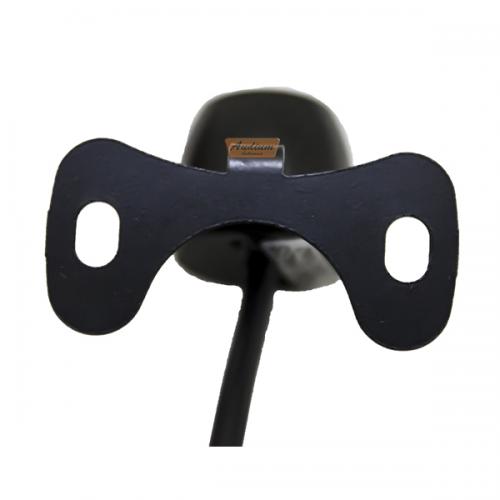

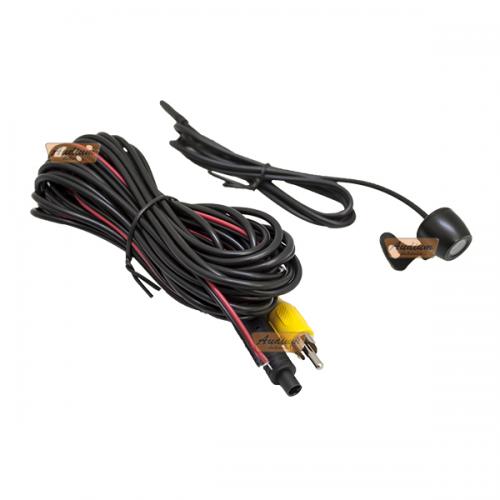

CAM /RE *AIKON CP-6420 UNIV. /BORBOLETA /PARACHOQUE

Sensor: 1/3,6” CMOS;

TV system: PAL/NTSC;

Effective pixel: 648*488;

Electronic shutter: 1/50-1/1000, 000 Sec / 1/60 – 1/1000, 000 Sec;

Sensor scan mode: Progressive scan;

Sync system: Internal;

Video output: CVBS, 1,0V 75ohm;

Resolution: 420TV Line;

S/N Ratio: R>46db;

Lens focus: 1,8mm;

Lens angle: 170º;

Waterproof: IP67

Minimum illumination: 0,1 Lux/F1.8;

Current consumption: <100mA;

Power supply: DC 12V +or- 10%;

Operation temperature: -20ºC ~ 75ºC (RH95% MAX.);

Storage temperature: -40ºC ~ 85ºC (RH95% MAX.);
